Overview, Deployment, and Code

You can deploy the OMF inside a Docker container and access some of its functionality via an HTTP REST API.

Please see this dockerfile and start/deploy via dockerBuild.sh.

All code and tests for this interface is in the omf/scratch/GRIP subdirectory.

Major Functionality

The major functionality available via the API is:

• /oneLineGridlab - generate a one line diagram of a GridLAB-D .glm file.
• /milsoftToGridlab - convert a Milsoft Windmil ASCII export (.std & .seq) in to a GridLAB-D .glm.
• /cymeToGridlab - convert an Eaton Cymdist .mdb export in to a GridLAB-D .glm.
• /gridlabRun - run a .glm through GridLAB-D and return the results as JSON.
• /gridlabdToGfm - convert a GridLAB-D to a LANL ANSI General Fragility Model file.
• /runGfm - calculate distribution damage using a LANL ANSI General Fragility Model file.
• /samRun - run NREL SAM with JSON inputs/outputs.
• /transmissionMatToOmt - convert a .mat or .m input in to a JSON .omt transmission circuit format.
• /transmissionPowerflow - run ACOPF for a .omt transmission circuit.
• /transmissionViz - generate an interactive and editable one line diagram of a transmission network.
• /distributionViz - generate an interactive and editable one line diagram of a distribution network.

For the full documentation on the API endpoints please see the docstrings in grip.py.

Test Interface

All of the endpoints are tested via test_grip.py.

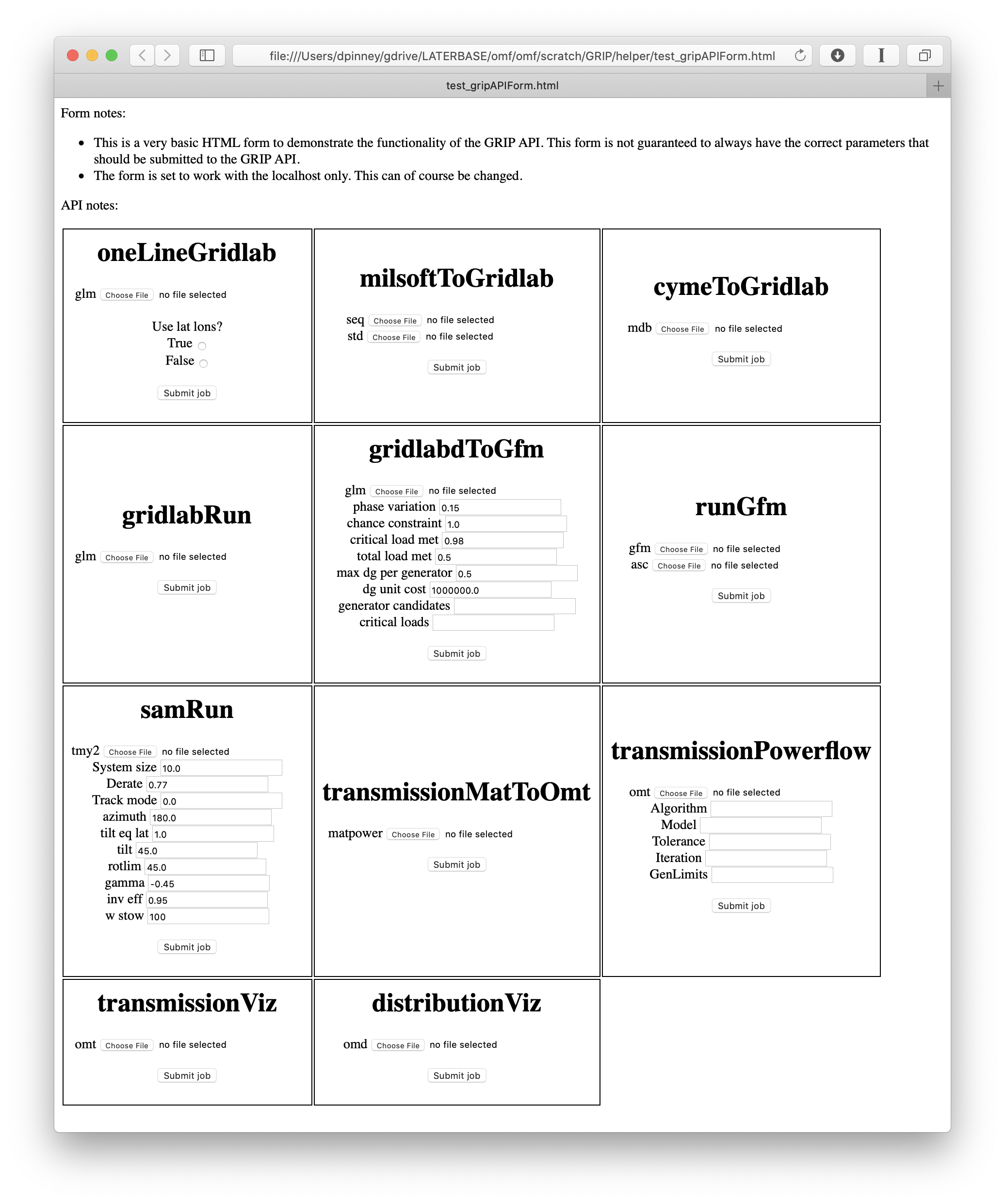

The test framework comes with a GUI in HTML (screenshot below) to easily test all the endpoints and inspect the results.
